MB Quart MBQRG-STG3-RC-1 800 Watt STAGE 3 Polaris RANGER Tuned System Designed For RIDE COMMAND

Description

MB Quart MBQRG-STG3-RC-1 800 Watt STAGE 3 Polaris RANGER Tuned System designed for RIDE COMMAND

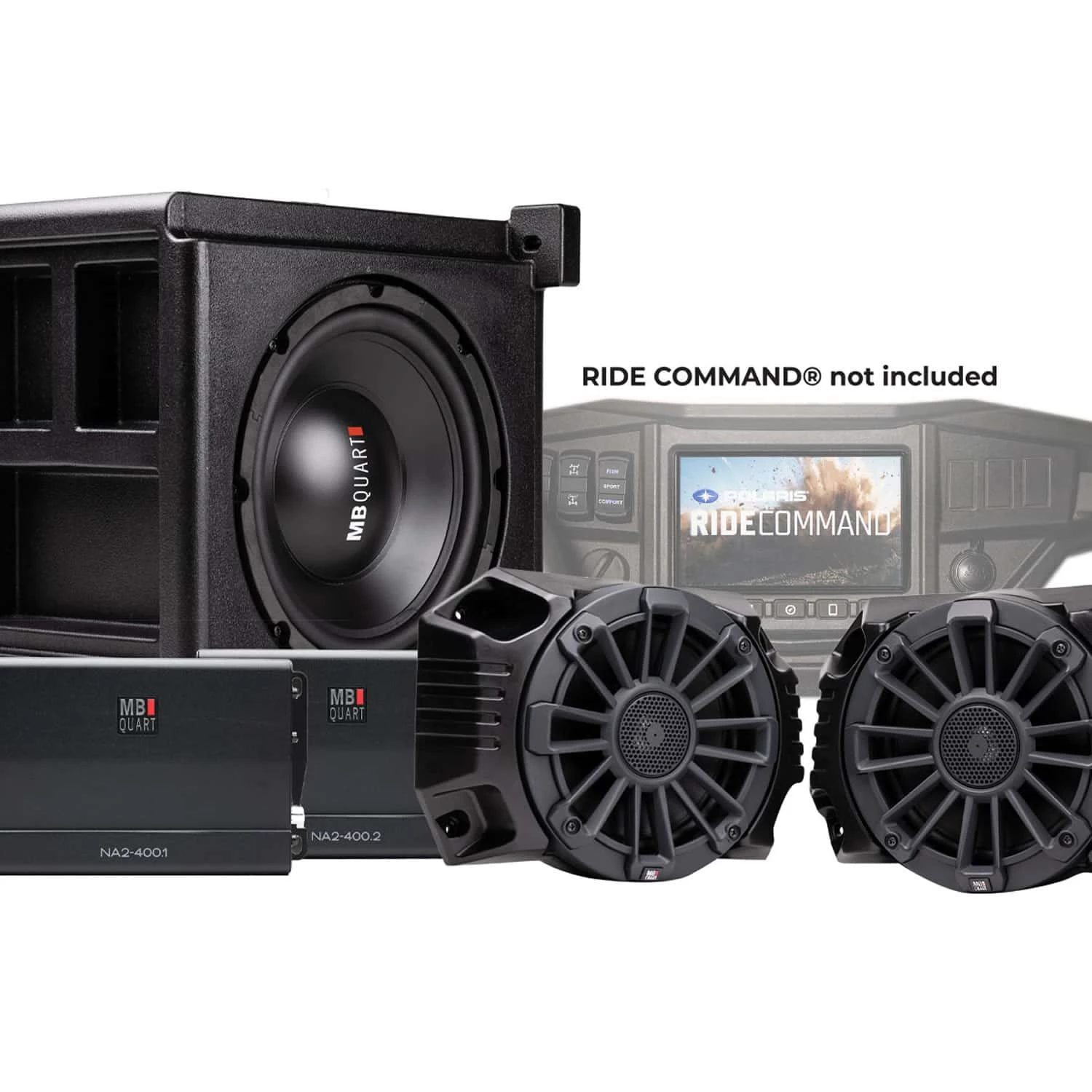

Polaris RANGER 2018-Current UTV Tuned Audio Package: Three Speaker 800 Watt STAGE 3 Audio System designed to integrate into the vehicle’s RIDE COMMAND source unit to control the system which includes two amplifiers powering 2 coaxial speakers, 10 inch subwoofer in a sealed enclosure. All necessary mounting panels and harnessing are included.



Kit Includes:

Source Unit	SOURCE UNIT INTEGRATION: Adapters to integrate with Polaris RIDE COMMAND (The actual RIDE COMMAND source unit is NOT INCLUDED).

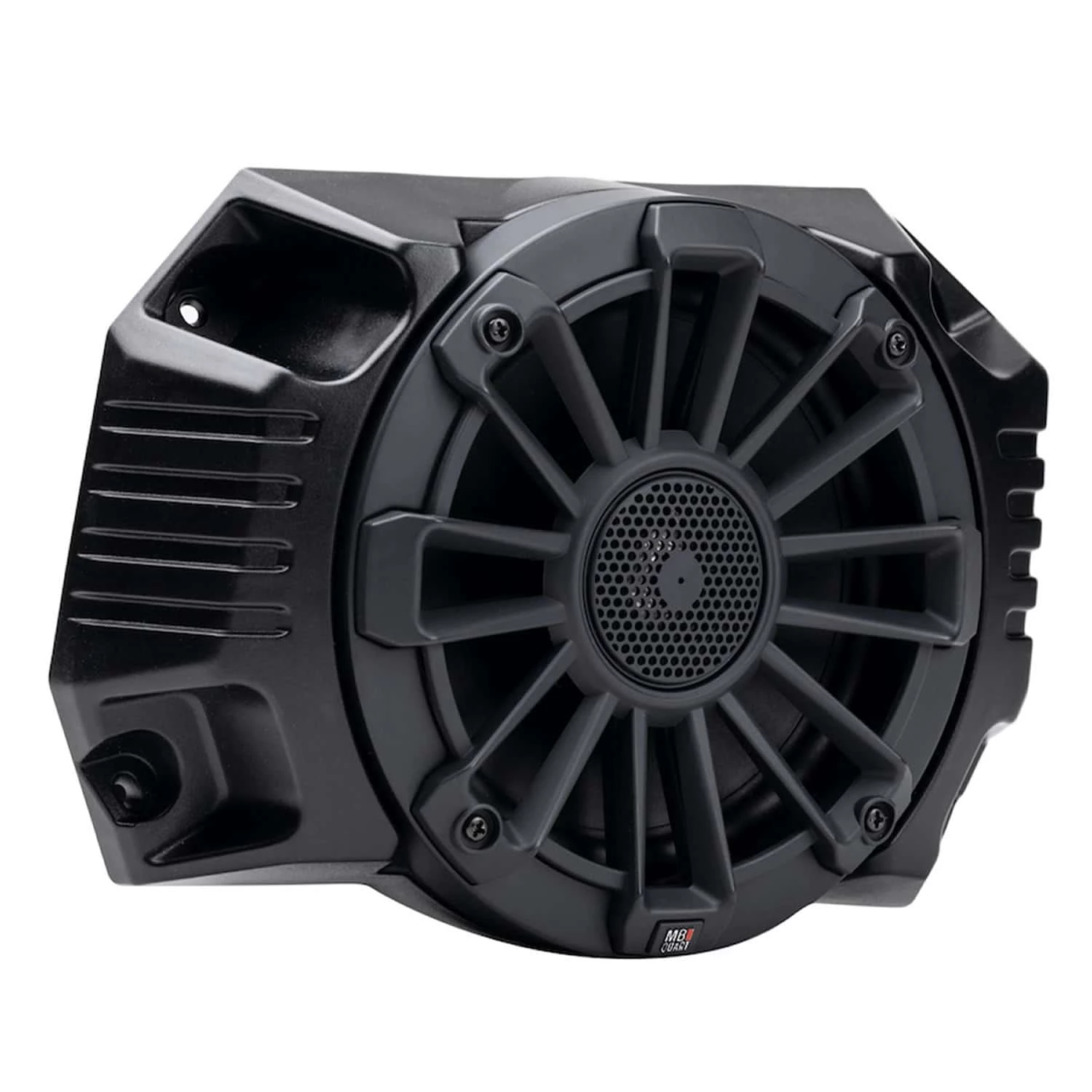

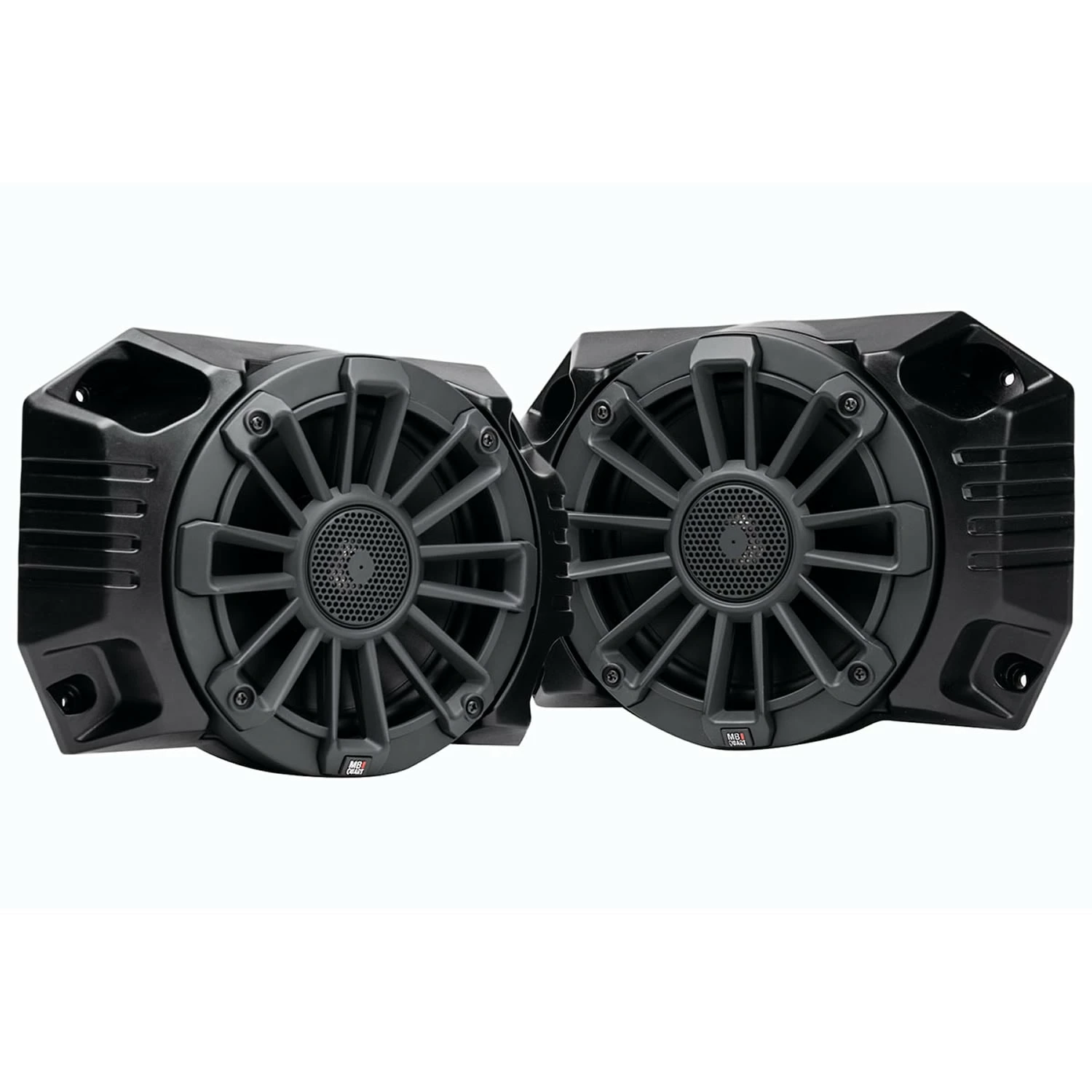

Front Speakers	The front 6.5 inch coaxial speakers are the NP1-116 two way speakers.
Front Speakers Mounting	High impact HDPE RANGER specific left & right speaker panels are an ultra-compact design that takes up minimal space.

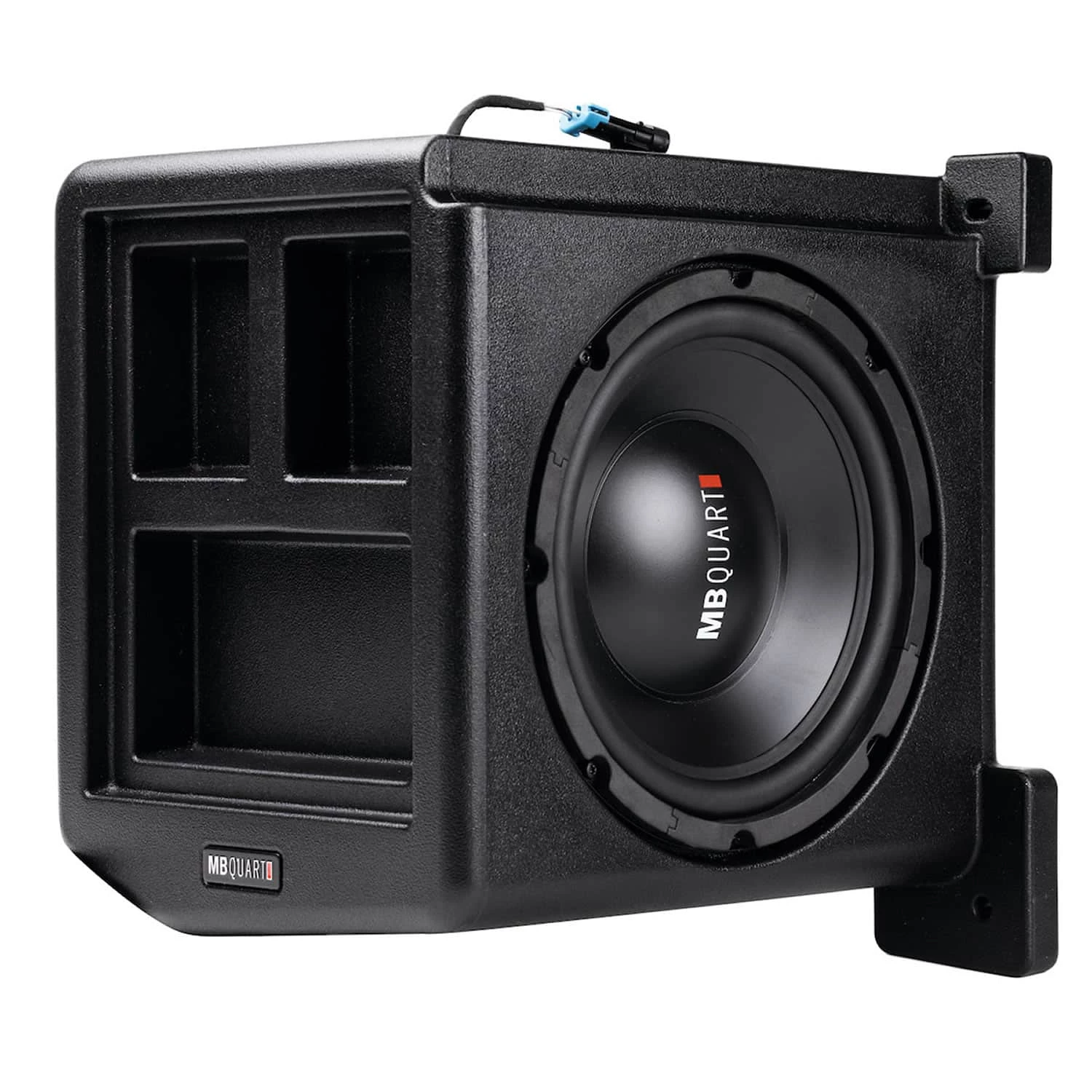

Subwoofer	Dual voice coil 10 inch subwoofer in a high impact HDPE composite enclosure.
Subwoofer Mounting	The subwoofer enclosure fits perfectly under front passanger seat and features extra storage pockets.

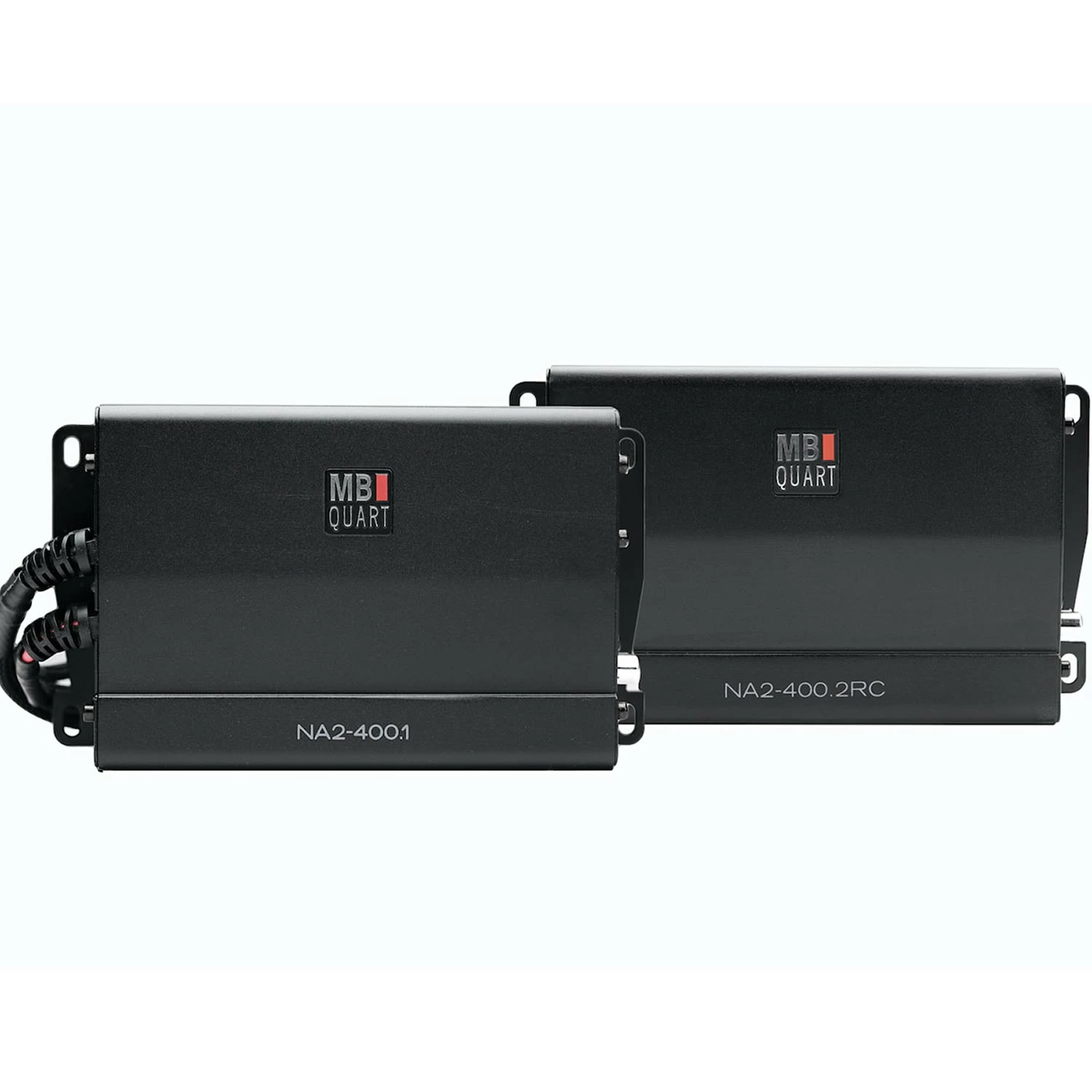

Full Range Amplifier	NA2-400.2RC: 400 Watt Two Channel Class D, Compact Powersports Amplifier that has been engineered for superior integration with RIDE COMMAND.
Full Range Amplifier Mounting	RANGER amplifier mounting bracket is included.
Subwoofer Amplifier	NA2-400.1: High Efficiency, Class D 400 Watt Mono Subwoofer Amplifier.
Subwoofer Amplifier Mounting	RANGER amplifier mounting bracket is included.
Harnessing	Full system harness capable of accommodating source unit, 2 amplifiers, which power 4 speakers, and the subwoofer.
Accessories	MBQRG-ACC-1: RANGER Radio and Dual Amplifier Harness is included with the system.



Features:

Compatible Vehicle Fitment	Polaris RANGER 2018-Current with RIDE COMMAND
Compatible Product Models	Polaris RIDE COMMAND
Marine Grade Protection / IPX Rating	MB Quart has engineered a select group of UTV-tuned audio systems that are perfectly designed for the Polaris RANGER. It is essential that every component installed in a RANGER be torture tested to be as reliable as it can be in such a harsh environment. This system is made up of multiple components that have different IPX ratings. The speakers and subwoofer are IPX67 rated. The amplifiers are IPX5 rated.
Source Unit Features	Integration with RIDE COMMAND, a high-tech source unit with an off-road display that acts as the hub and integrates your phone, GPS, audio, and communication systems. The actual RIDE COMMAND source unit is NOT INCLUDED.
Speaker Features	These speakers are meticulously engineered to fit in the Polaris RANGER. They include a 1″ Titanium Dome Tweeter that will deliver natural sounding high frequency response, while producing high volume. Injection molded composition Polypropylene cone produces impactful bass with minimal cone flex. The Composite (UV Resistant ASA+Fiberglass) frames are incredibly strong and lightweight. The entire assembly makes it as indestructible as the RANGER.
Amplifier Features	High Efficiency Class D Amplifier Compact Powersports Subwoofer Amplifier.
Subwoofer Features	400 Watt Specific 10 inch Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, RANGER Subwoofer Enclosure with storage pockets, powered by the 400 Watt High Effeciency Class D amplifier.
Mount / Harness	Plug and Play Harness. Waterproof Connectors with pre-measured wires. No guesswork, no installation mistakes.
Time and Tools	Standard hand tools are required. See the manual for time on each of the different components.



Specs:

Weight	40.5 lbs
Dimensions	27.2 × 18.6 × 22.4 in
Type	UTV Kit
Brand	MB Quart
Series	Polaris RANGER Tuned
Category	Powersports
Condition	New
Color	Black
Warranty	1 Year
IPX Rating	IPX67
Compatible Vehicles	Polaris RANGER 2018-Current with RIDE COMMAND
UTV Kit Total System Power (watts)	800
Additional Details	See Kit Inclusions and Features & Benefits for product components and details.
