CageWRX Super Shorty Cage Kit – RZR XP 1000 / Turbo S

Description

CageWRX Super Shorty Cage Kit – RZR XP 1000 / Turbo S

Ready-to-weld Roll Cage Kit for Polaris® XP 1000 (2019+) / XP Turbo (2019+) / XP Turbo S (2018+)

Laid back design provides a significantly lower roll cage in a clean and strong design. Our Super Shorty roll cage utilizes a very slight radius roofline. All tubes are DOM steel and mandrel bent and laser cut for exact fit. Tube junctions are keyed to aid in the assembly. All six stock mounting locations are used and all six chassis clamps are included. No grinding or other work is required. The kit can be assembled and welded on the chassis without the need for a separate fixture. Everything needed to replace the stock roll cage is provided. Kit must be assembled and welded by a competent fabricator.



Features:

• Fits RZR XP 1000 (2019+) / XP Turbo S
• High-grade DOM steel
• 1.75″ diameter main tubes
• .095″ wall thickness on all tubes

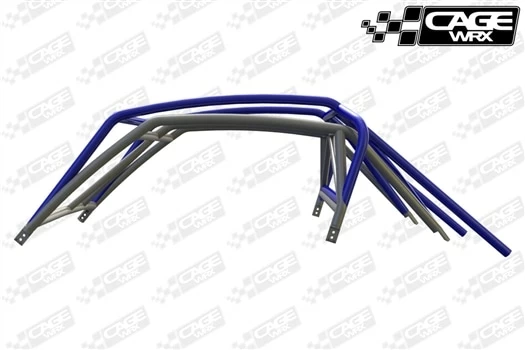

• 6.7″ lower than stock XP1000 cage in the rear
• 2.7″ lower than stock XP1000 cage in front
• Mounts to all six stock locations
• Includes all six chassis clamps
• Includes rear shock reservoir mounts
• 85 lbs. complete cage weight
• Designed to work with our Super Shorty Roof kit
• ROOF NOT INCLUDED IN KIT



What’s In The Box?

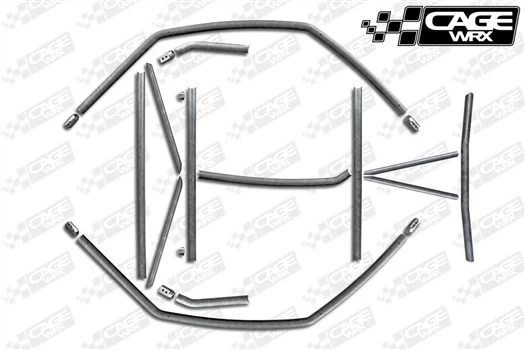

• 13 Laser notched DOM steel tubes with tab and slot design for easy positioning of tubes
• 6 Billet tube ends (chassis clamps or bungs)
• 2 Whip mounts
