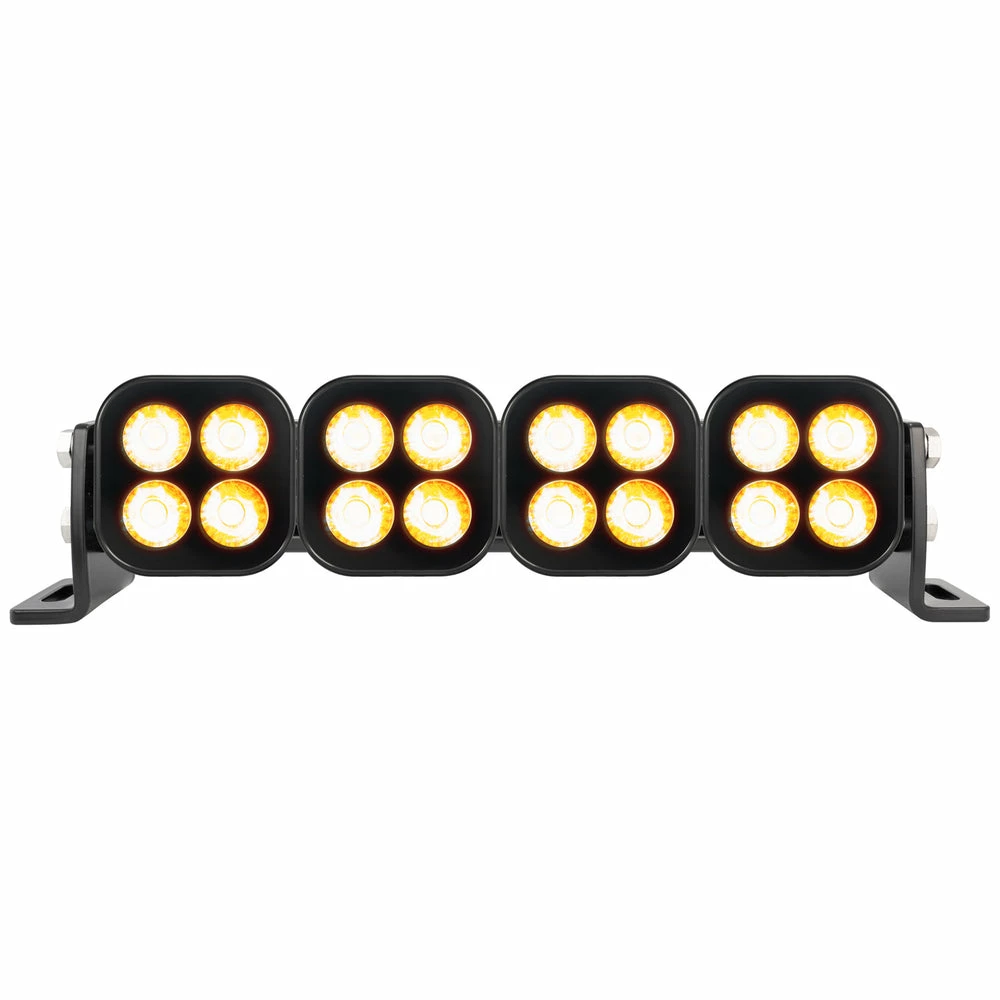

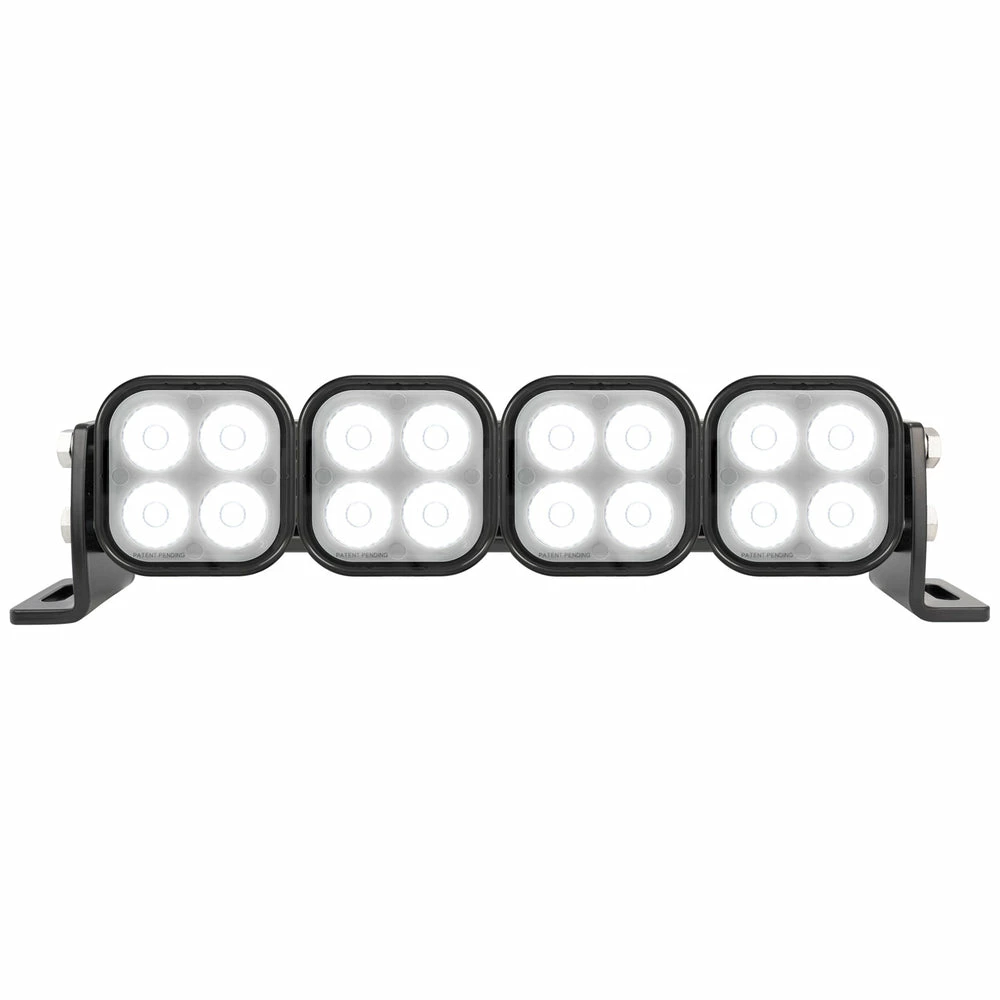

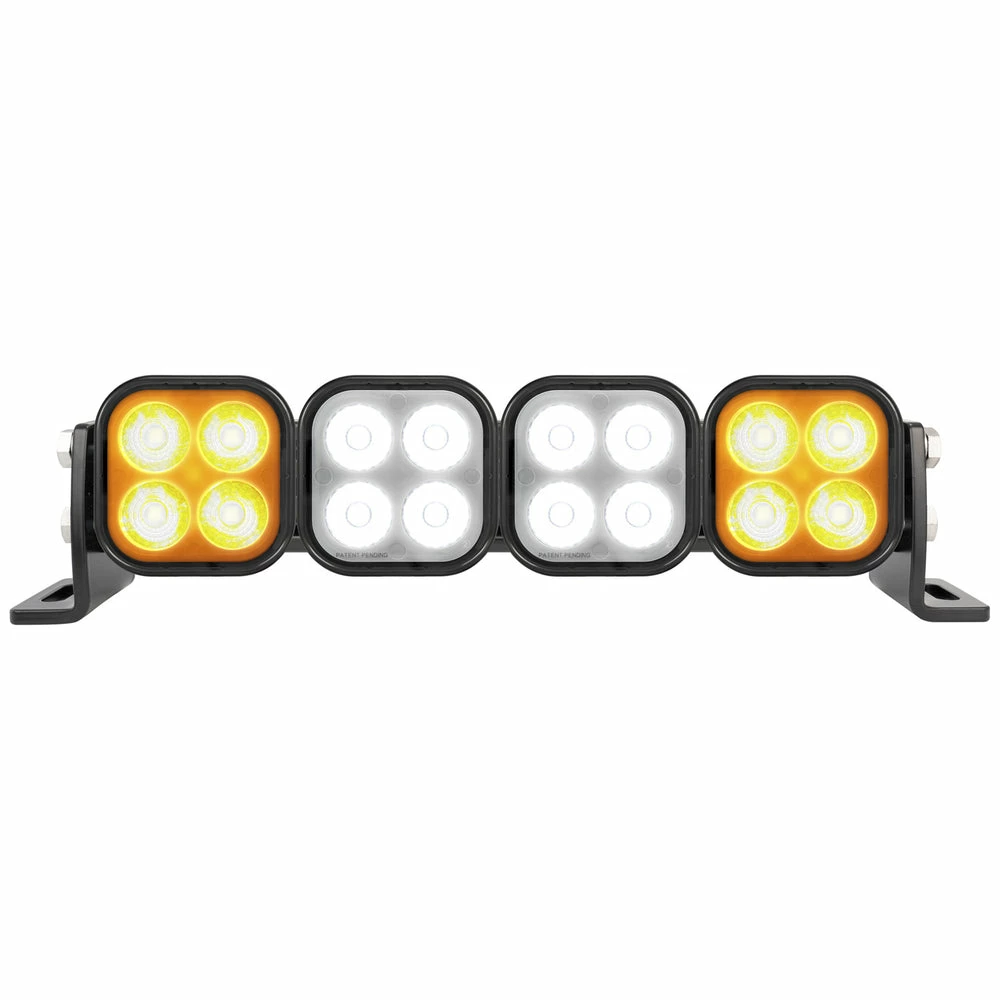

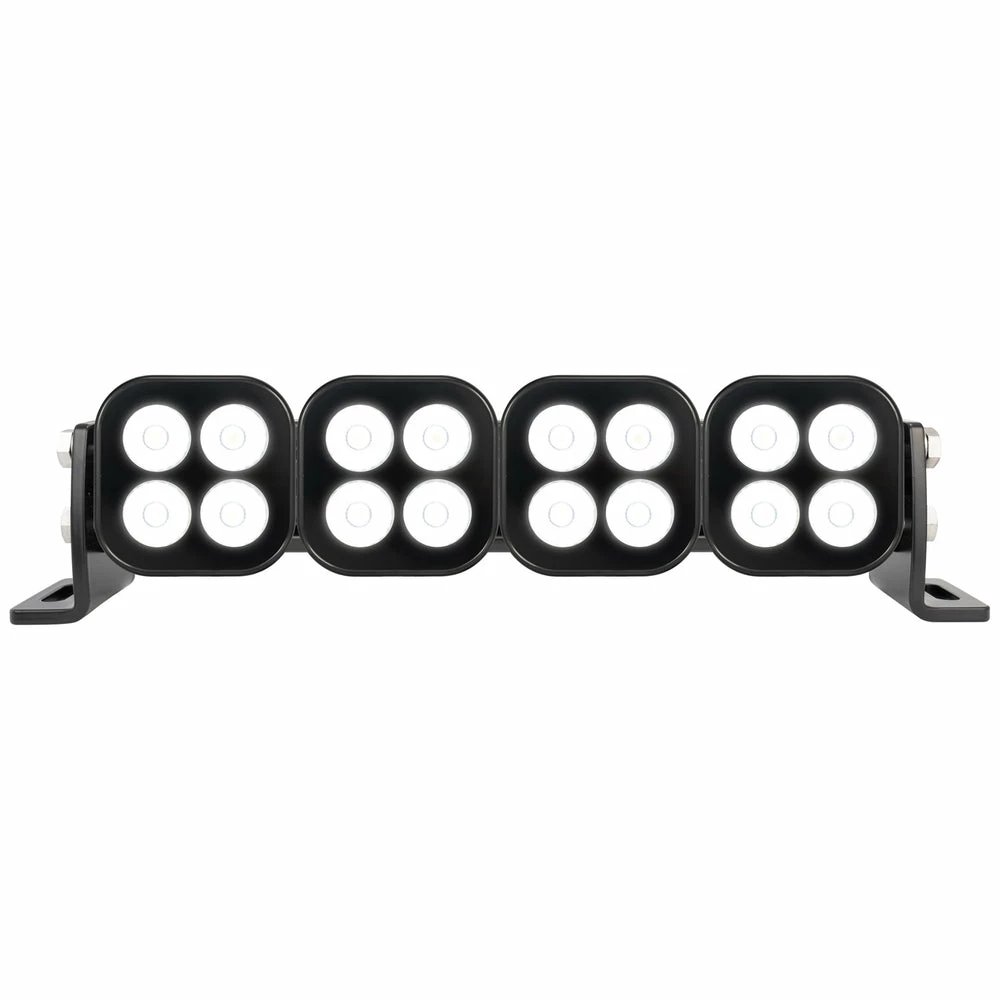

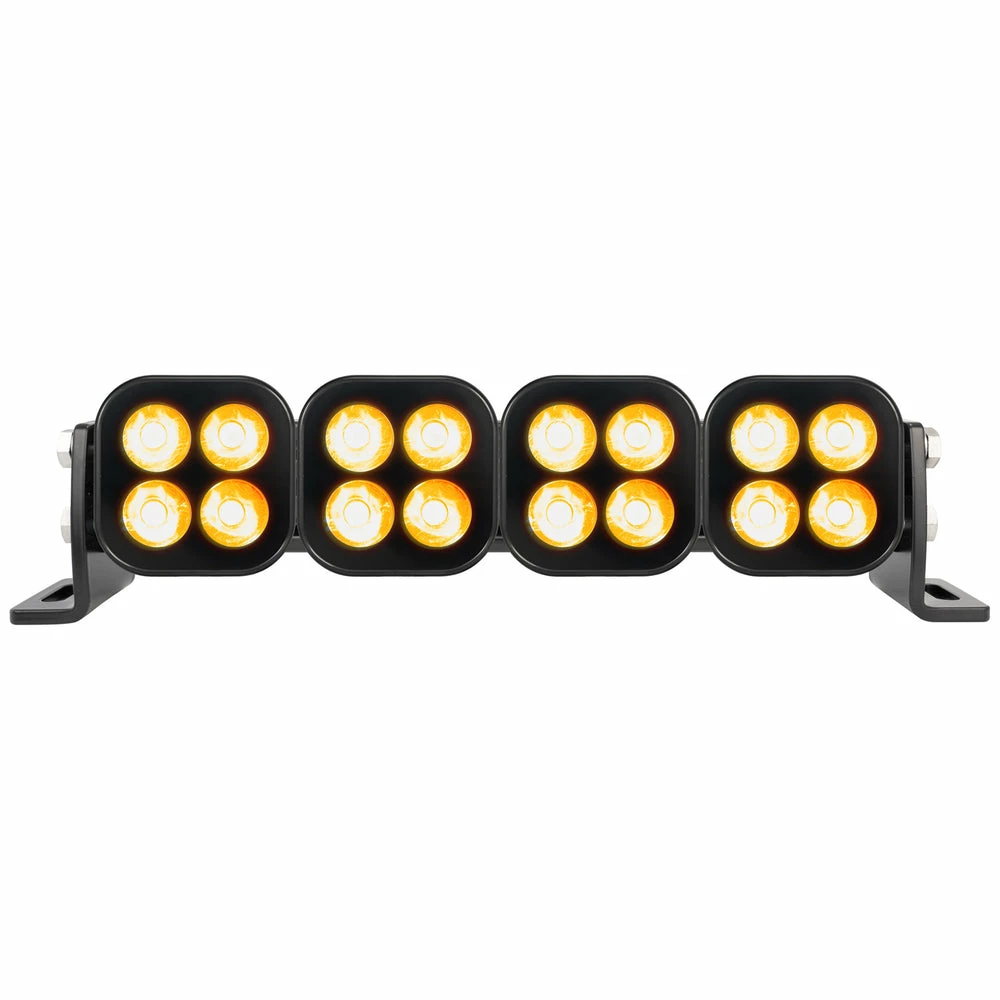

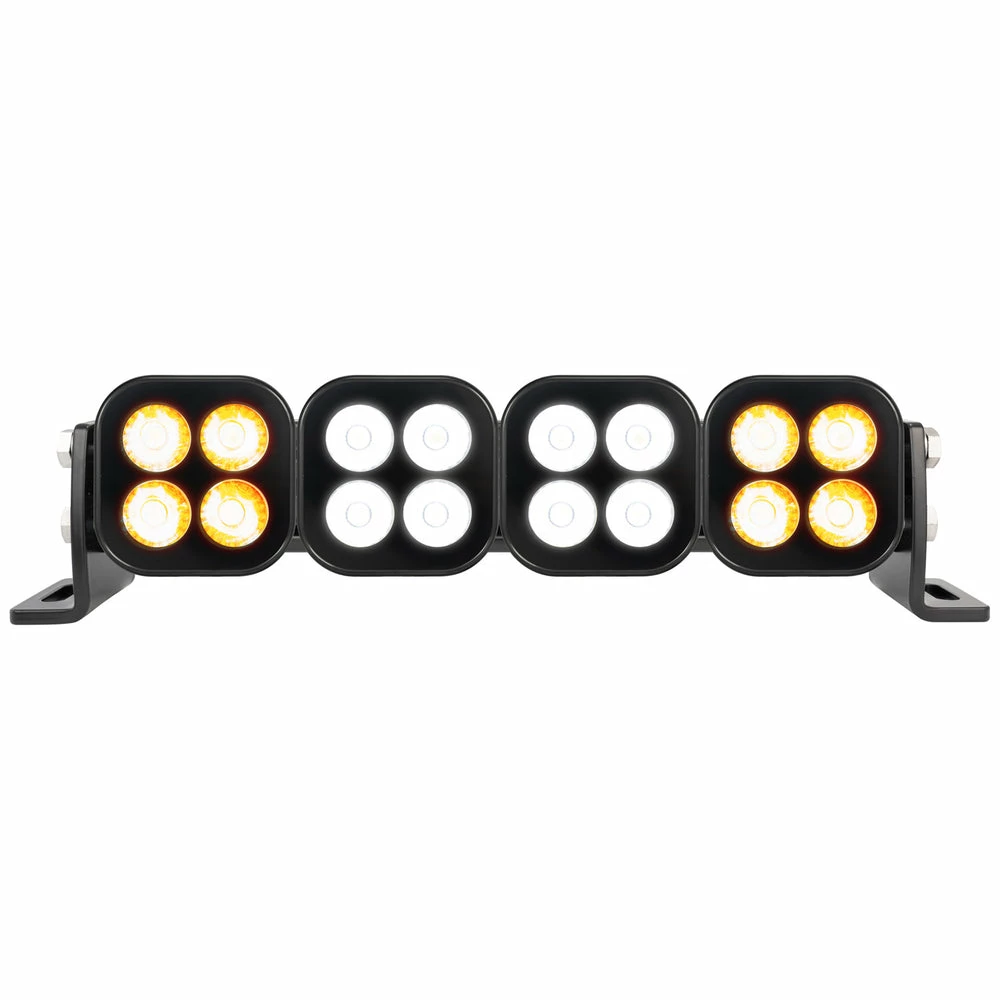

Vision X Unite Modular 12″ Preconfigured LED Light Bar

Description

Vision X Unite Modular 12″ Preconfigured LED Light Bar

Brings lighting power and customizing to the forefront by allowing you to build your light bar with endless configuration possibilities. Each Unite light bar can be configured by simply swapping around the many different pod options on our new quick-connect mounting rail so you can create the beam pattern and output to meet your lighting specs.

Preconfigured Options:

Unsure of which configuration works best for your application? We did the research for you! Use the drop-down to see the different configurations that we have put together to cover the most popular lighting styles.

Go Custom:

Don’t see a configuration that you need? Build your light bar from the ground up and pick each pod for a completely custom UNITE lighting setup.

Each module features a 4-LED advanced optic design that comes in multiple different beam patterns, output options, and faceplate styles. With the Unite, you’re no longer forced to decide between a single color output or flood and spot beam patterns. The Unite Modular Light Bar system enables you to choose, configure, and build the light bar that you need for your vehicle.



Add Wiring Accessories:

• For Single Circuit Function (All pods on/off) – Choose the Standard Vision X wiring harness only.
• For Split Circuit Function (Ex. Outer Pods on/off | Inner Pods on/off) – Choose the Split-Function Wiring Kit only. Note: Make Sure to Select Correct Length!

Want to run multiple circuits? No problem. The modular design allows for each pod to powered independently with its own separate input. This allows for complete control over your light bar with the ability to run different sections as separate functions. Run your amber pods on one switch and your white ones on another or your spot pods on one switch and your flood pods on another. The possibilities are endless.



Features:

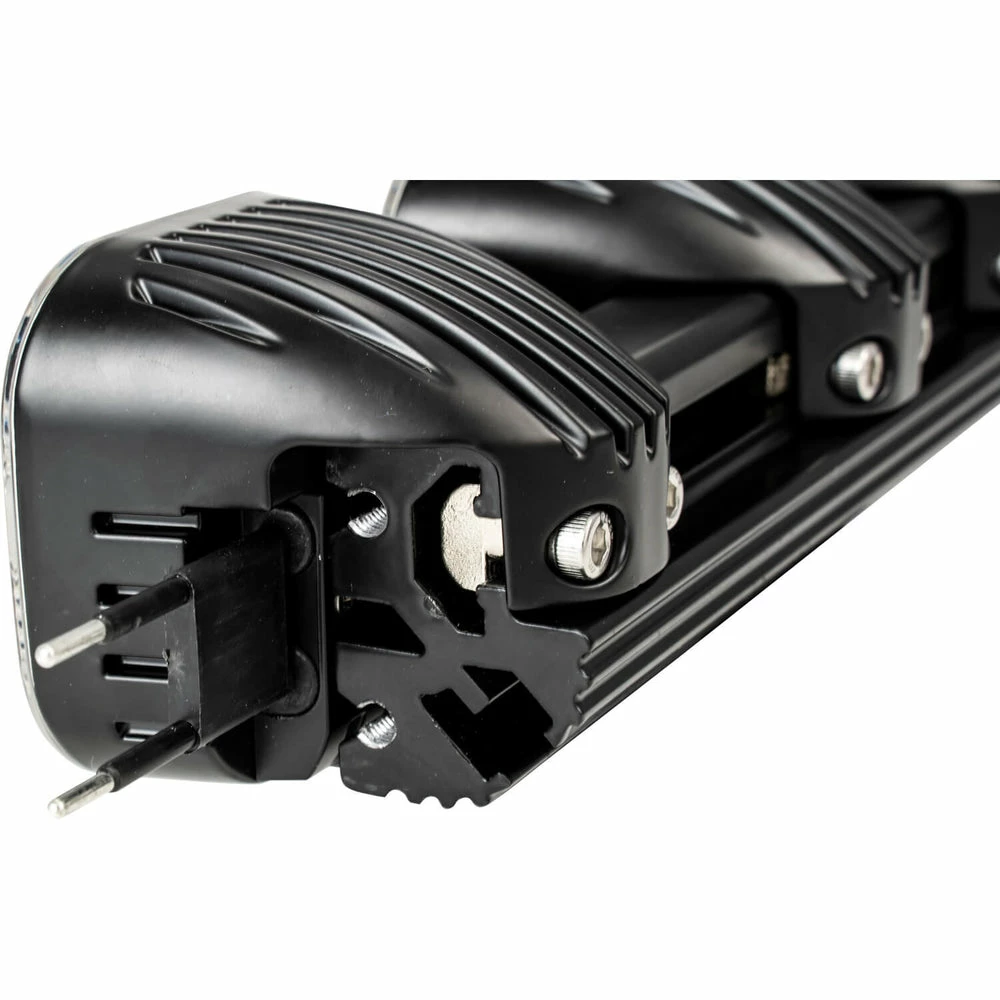

• Quick Connect Mounting Rail System
• 2,100 Lumens per Module (White)
• High Output CREE LEDs (20W White | 12W Amber)
• Heavy Duty Adjustable Wing Mounts Included
• Split-Function Capable With Accessories



Specifications

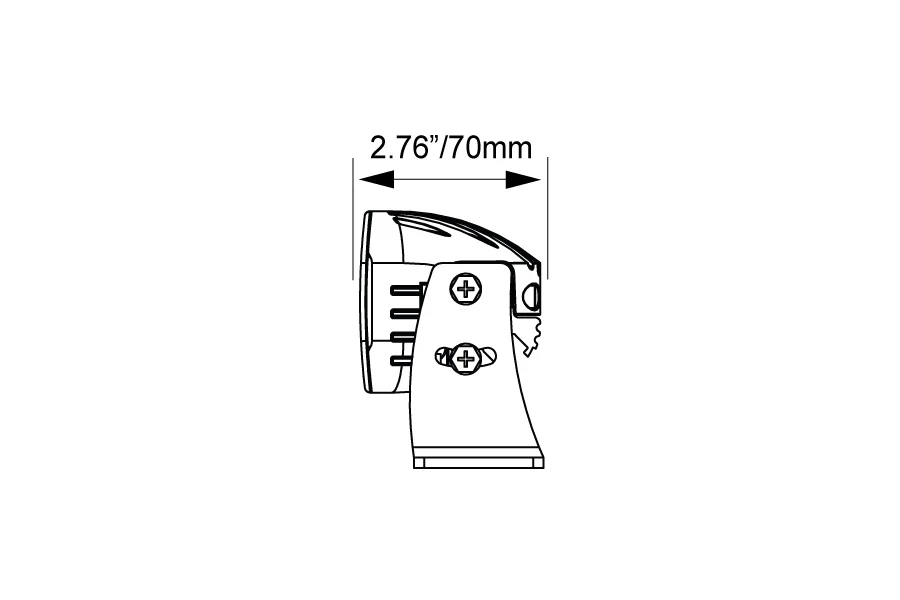

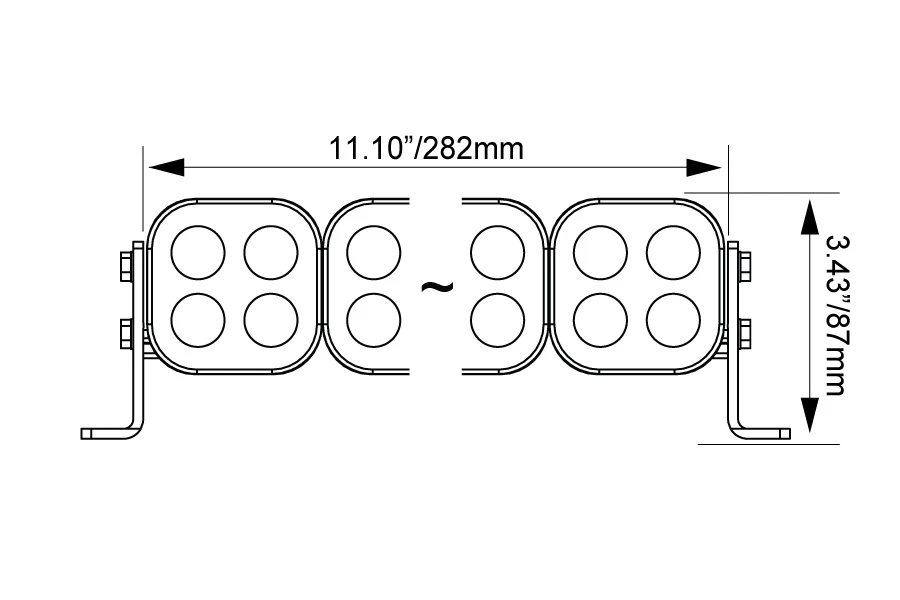

Product LxWxH	11.1 x 2.76 x 3.43
Input Voltage	9-32V DC
AMP Draw	6.67A/5.33A/4A
Watts	80W/ 64W/ 48W
Raw Lumens	8,448 lm/5,244 lm/2,040 lm
